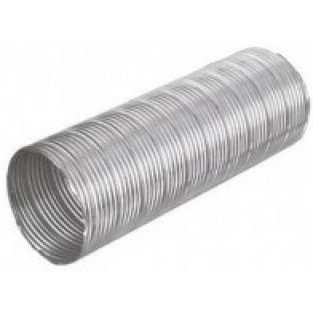

Z-Flex 5" x 5' Length of 1-Ply Aluminum Duct (1TLXXXX0505)

Product Overview

Z-Flex 5" x 5' Length of 1-Ply Aluminum Duct (1TLXXXX0505)

Extra Aluminum Length For Use with Category I Natural-Draft Gas-Fired Heating Equipment and Gas Fireplaces
Availability:

In stock

Shipping:

Eligible for Free Ground Shipping on orders over $199

Our Price:

Regular Price: $34.43

Special Price: $27.54



Call Us 24/7 at 866.289.4652 for Contractor Pricing!

Quantity:

Z-Flex 5" x 5' Length of 1-Ply Aluminum Duct (1TLXXXX0505)

  • Z-Flex 5" x 5' Length of 1-Ply Aluminum Duct (1TLXXXX0505).

    Z-Flex 5" x 5' Length of 1-Ply Aluminum Duct (1TLXXXX0505) is a semi rigid and lightweight non-insulated air duct. Triple Lock (T/L) is manufactured by using a dead soft aluminum strip which is spirally wound and mechanically joined together forming an air tight and leakproof triple lock seam. A self supporting and corrosive resistant ULC-S110 and UL181 Class 1 product is produced which provides excellent strength and flexibility, adaptable to any low to high pressure heating, ventilation and air conditioning system.

    For Use with Natural Draft Appliances.

    Not intended for use with Category II, III, or IV gas burning appliances as defined by the National Fuel Gas Code, NFPA 54, or other appliances that result in condensation or corrosive acids on the liner of the chimney, or that create positive pressures in the chimney system.

    Z-Flex liner is manufactured by using a dead soft aluminum strip which is spirally wound and MECHANICALLY joined together forming an air-tight and leakproof TRIPLE-LOCK seam. Z-Flex's specially designed 'deep corrugations' provide for greater flexibility and ease of installation. The result is a clearly superior product offering incredible longevity.

    Note: The lengths of 1-ply aluminum ducts are available in 5 ft increments only, up to 50 ft. Also, this product is to be used in fresh air intake ONLY. Not to be used as a chimney liner.
  • Brand Z-Flex
    Model 1TLXXXX0505
    Manufacturer's Part Number (MPN) 1TLXXXX0505
    Application Commercial,Residential
    Venting Style Z-Flex Chimney Liner
    Product Type Z-Flex 5" Chimney Liner
    Product Sub Type Flexible
    Venting Type Intake Air Ducts
    Material of Construction Aluminum
    Color Silver
    Product Dimensions (H" x W" x D") 5 x 5 x 60
    Product Dimensions (Feet) 5
    Product Weight (Lbs) 12
    Shipping Weight (Lbs) 12.0000
    Warranty 25 Year Limited Warranty
